MAC-EL-20

Intelligent Floor-Level Security

SECURE VERTICAL ACCESS — SIMPLIFIED

The Malibu MAC-EL-20 Elevator Access Control System delivers secure, floor-by-floor authorization within the Malibu Access Control platform. Designed for commercial offices, residential towers, healthcare facilities, hospitality environments, and multi-tenant properties, the system restricts elevator floor selection based on assigned credentials.

With scalable architecture supporting up to 40 controlled floors, the Malibu Elevator Controller provides reliable, high-capacity vertical access control without disrupting standard elevator operation.

KEY BENEFITS

• Restrict floor access by user credential

• Seamless integration within the Malibu platform

• Scalable from 20 to 40 floors

• Supports 20,000 users

• Stores 100,000 event transactions

• Real-time monitoring and reporting

• Modular, panel-mounted design

• Ideal for new installations or retrofit applications

HOW IT WORKS

1. User presents a credential at the elevator reader.

2. The Malibu system validates the credential.

3. Authorized floors are enabled inside the cab.

4. Auto-floor selection based on credential privilege.

5. Unauthorized floors remain inactive.

6. Activity is logged within the Malibu software platform.

This ensures only approved occupants can access restricted floors — enhancing tenant security and building control.

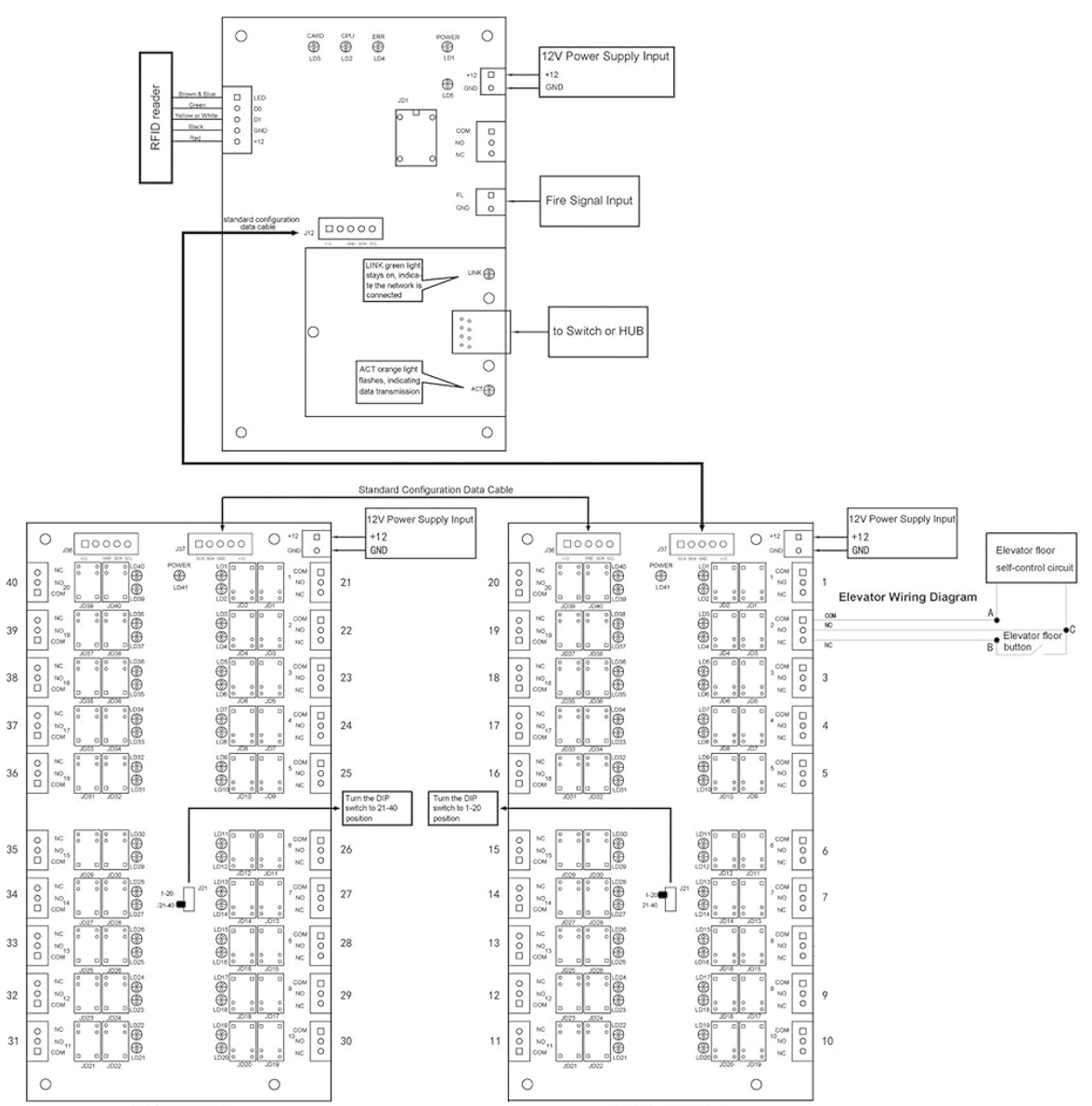

SYSTEM CONFIGURATION

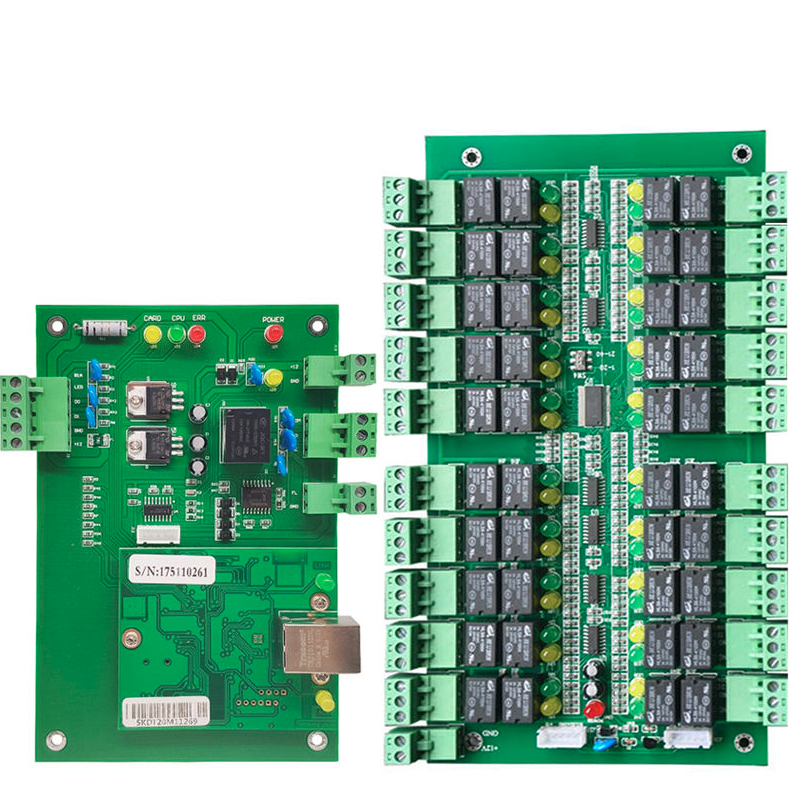

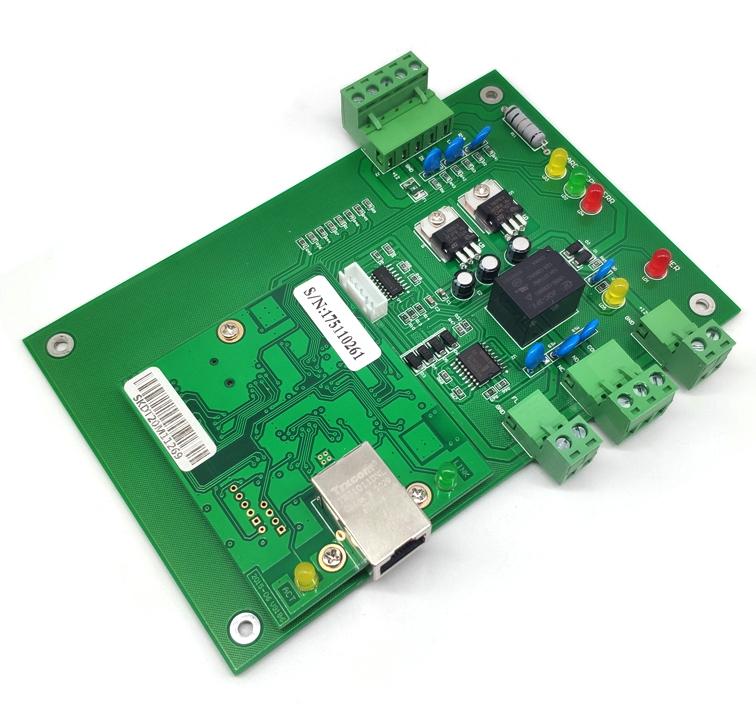

MAC-EL-20

Main Elevator Controller

• Controls up to 20 floors

• 20 dry-contact relay outputs (NO/COM)

• TCP/IP network communication

• Wiegand 26-bit / 34-bit reader support

• 12V DC power input

• Panel-mounted design

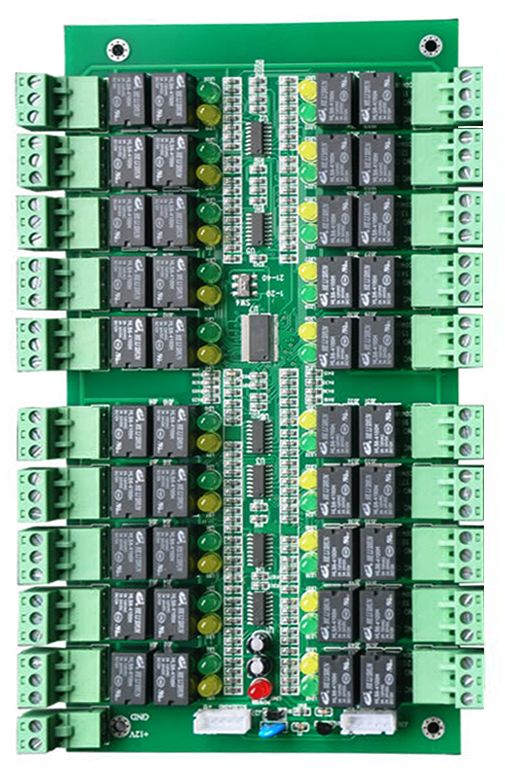

MAC-EL-20-EXT

Expansion Module

• Adds 20 additional floor relay outputs

• Expands system capacity up to 40 floors

• Direct connection to MAC-EL-20

• Panel-mounted installation

SYSTEM CAPACITY

IDEAL APPLICATIONS

• Commercial Office Buildings
• Multi-Tenant Properties
• Residential High-Rises
• Condominiums
• Hotels & Hospitality
• Healthcare Facilities
• Government Buildings
• Restricted Corporate Floors
